Featuring a robust, IP65-rated case and equipped with advanced accessories, the BioCase ensures stable, reliable, and long-term operation even under challenging conditions. Its high-performance power system provides up to 8 hours of continuous battery life, supporting truly mobile deployment and efficient data collection, delivering a stable, efficient, and convenient biometric registration experience.
Designed with a waterproof, crash-protective, and rugged yet lightweight build, coupled with comprehensive functionalities and a robust battery life, the BioCase emerges as the ideal solution for mobile registration needs.

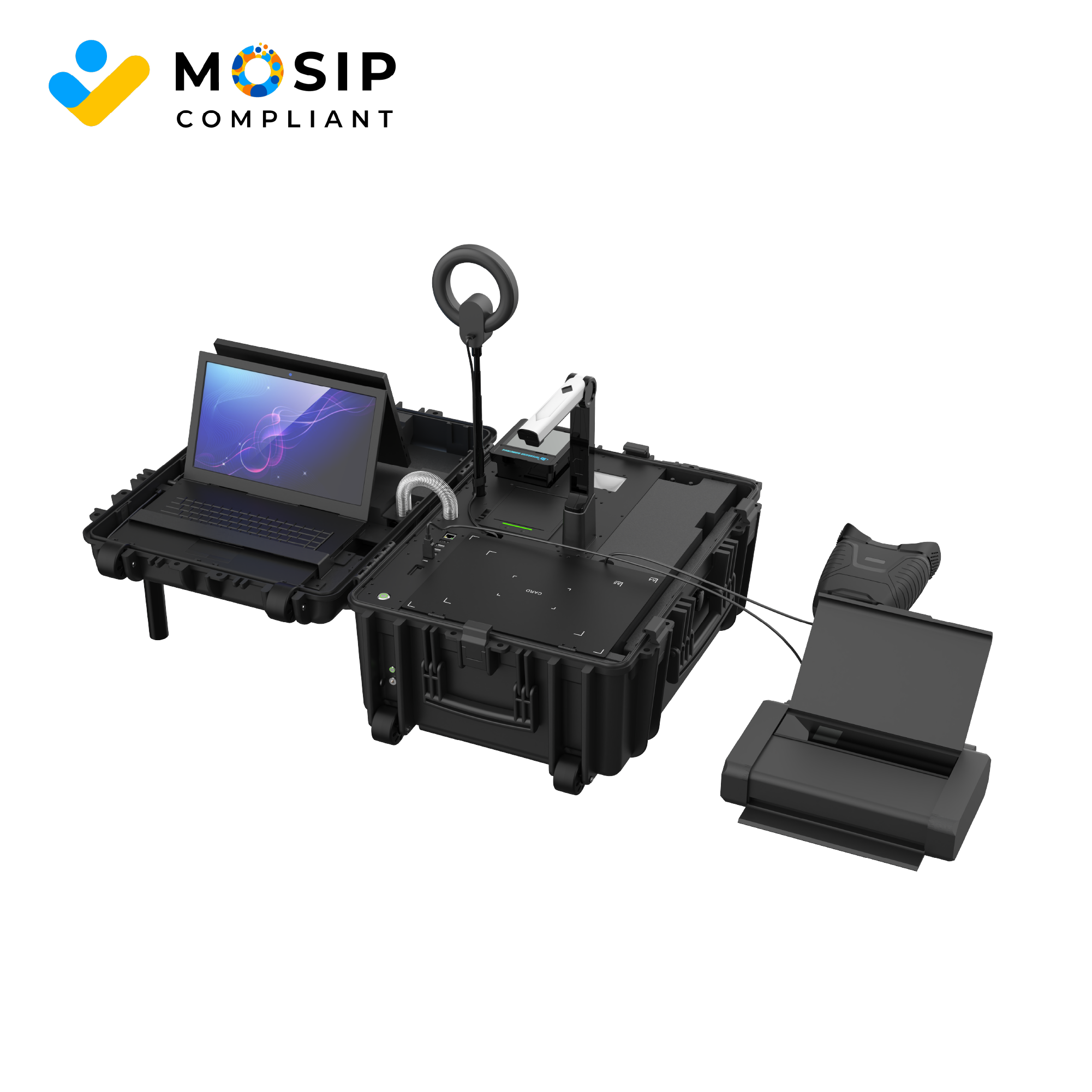

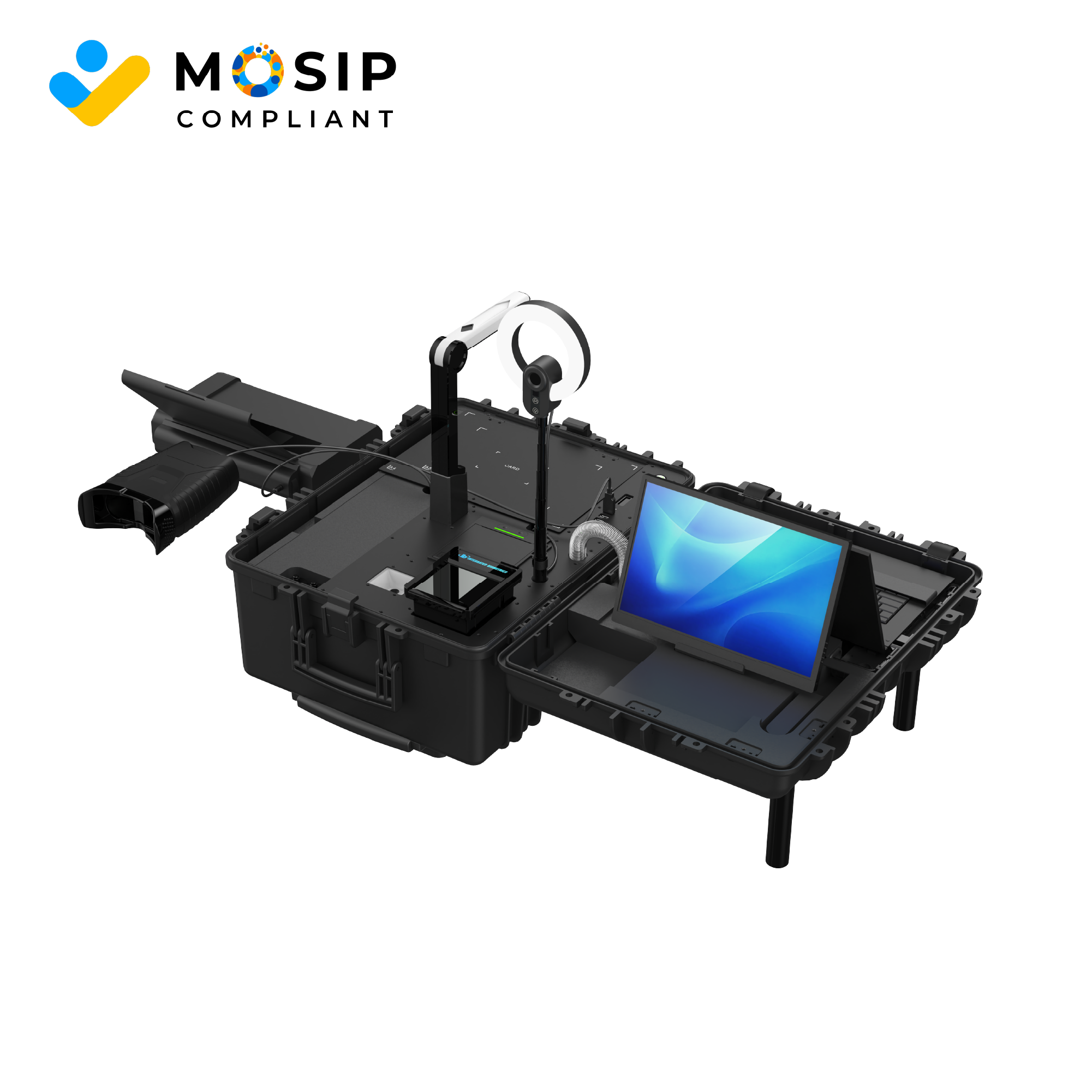

| Mobile Registration Kit |
|
|
MOSIP |
• MOSIP Compliance • MOSIP certified |
|
Components |
• Laptop x1 • Extended Monitor x1 • Fingerprint scanner x1 • Iris Scanner x1 • Photo camera x1 • Printer x1 • Documents Scanner x1 • Battery pack with 8 hours of battery life x1 • Solar panel for battery charging x1 • Light Source x1 • Backdrop x1 • Electrical extension cord x1 • USB Hub x1 • External hard drive x1 • Internet Connection Key x1 • QR code reader x1All cables (power, USB, others) |
|
Usability |
Lightweight, with telescopic handle & sturdy wheels. Integrated solution: components, electronics, power systems, cable bundles in suitcase. Registration operable inside/outside. |
|
Security |
Single lock, three keys. |
|
Protection |
IP 65 & IK 10. |
|
Operating Temperature |
10 - 50°C with proper ventilation. |
|
Lifespan |
Minimum 6 years. |
|
Weight |
Total weight of case + components ≤ 25 Kg |
|
Padding |
Suitcase interior covered with suitable padding on all inner surfaces for equipment protection. |
|
Separation |
Each piece of equipment is housed in the suitcase in a separate compartment that is appropriate for the size and shape of the equipment. |
|
Roulette |
4 casters. |
|
Power supply |
8-hour continuous use. Powered/recharged from car batteries, main power, generator. Charging from main power ≤ 4 hours. The Kit includes adapters & surge - protected extension cables. |
| Laptop |
|
|
Screen |
14” FHD（1920x1080） |
|
CPU |
Latest generation Intel® Core™ i7 multi-core processor (4 physical cores) with a base frequency of 3.2 GHz and a cache of 6 MB |
|
RAM |
16GB DDR4 |
|
Operating system |
Windows 11 Pro 64-bit with the genuine license |
|
Storage |
512GB SSD（PCIe） |
|
Communication |
•10/100/1000 Gigabit LAN •Wi-Fi (IEEE 802.11 b/g/n) + Bluetooth |
|
Battery |
Lithium-ion battery (10 hours battery life) |
|
Anti-Virus Software |
Pre-installed with the latest updates and the ability to update virus definitions. The license of the anti-virus covers 3 years from the acceptance of the registration kits. |
|
Power supply |
• French type power cable or SHUKO •Universal external adapter, 100–240 V, 50–60 Hz |
|
Ports |
• 3 x USB 3.0 • 1 x USB 2.0 or higher • 1 x HDMI • 2 x USB Type-C |
|
Keyboard |
Built-in French backlit keyboard (AZERTY) |
|
Touchpad |
Multi-touch |
|
Mouse |
Wired - USB 2.0 Scrolling Optical Mouse with Mouse Pad |
|
Weight |
＜2 kg including the battery |
|
Audio |
Speakers |
|
Camera |
Built-in web cam |
|
Accessories |
Laptop bag from the same manufacturer as the computer |
|
Webcam |
|
|
MOSIP Compliance |
• Compliance with the latest SBI specifications • With MDS and device management server • With SDK for capture and quality control |
|
Capture Mode |
Automatic |
|
Image Specification |
ISO/IEC 19794-5:2011 |
|
Exceptional Image Specification |
• Frontal photo with facial features, two palm photos placed beside the face, and a full-body photo. • 60mm(width) x 40mm(height) |
|
Format of image |
JPEG 2000 lossless |
|
Rate of compression |
Lossless |
|
Image quality |
• ICAO 9303 compliant - Full front image, +/- 5 degree rotation, 24 bit RGB, white background • 35mm(width) x 45mm(height) |
|
Minimum Resolution |
1080 Pixels at 2.8 mm with a view of 90 degrees or more |
|
Capture Mode |
Manual capture with autofocus and auto-light adjustment |
|
Objective for Webcam HD |
HD webcam (1080p), complies with ICAO standards |
|
Connectivity |
Hi-Speed USB 2.0 |
|
Operating Temperature |
0 to +50 degrees Celsius |
|
Feeding |
USB |
|
Assembly |
Tripod, minimum height of 1.5 feet extendable up to 4 feet |
|
API Software |
• Compatible with the registration client and host operating system • Compliant with ISO 19785 (CBEFF) |
|
Compliance EMC |
FCC Class A or equivalent |
|
Sensor |
> 10 megapixels native |
|
Skin tone |
All |
|
FTM |
L0 - Use host-based security |
|
Maximum time of capture |
The capture time, all modalities combined, less than 4 seconds |
|
Compatibility |
Computer operating system |
|
Light source |
|
|
Size |
3 feet (width) x 4 feet (height), stand/wall mount |
|
Capacity |
60W |
|
Number of bulbs |
2 |
|
Retractable |
Yes |
|
Light |
Light white LED light |
|
Accessories |
Support 2 meter cable with an on/off switch near the operator |
|
Fingerprint capture device |
|
|
MOSIP Compliance |
• Compliance with the latest SBI specifications • With MDS and device management server • With SDK for capture and quality control |
|
Mode capture |
Automatic |
|
Image quality |
ISO 19794-4:2011 Infuse B1 |
|
Quality Score |
NFIQ v2.0 |
|
Scan Resolution |
500 dpi/ppi or more |
|
Grayscale density |
8-bit (256 grayscale) |
|
Certifications |
CE, UL, FBI Appendix F, RoHS, IP54, FCC certifié USB-IF |
|
ESD |
>=8kv |
|
Rejection of ambient light |
Yes |
|
LED Indicators |
Device status (on or off), fingerprint image status and quality |
|
Image Format |
JPEG 2000 lossless |
|
Preview |
> 3 frames/second MJPEG with overlapping quality score |
|
Capture area |
Greater than or equal to 76 mm x 80 mm |
|
Software API |
• Comply with operating system device manager and recording software application specifications to manage device discovery, streaming, capture, and encryption. • ISO 19785 compliant (CBEFF) |
|
Encryption |
Compatible with the registration client |
|
Connectivity |
USB 2.0 |
|
Feeding |
USB 2.0 |
|
Humidity |
10-90% non-condensing |
|
Operating Temperature |
0 – 50 degree Celsius |
|
Liveness detection |
In accordance with IEEE 2790 |
|
FTM |
L0 - Use host-based security |
|
Compression ratio |
Lossless |
|
Compliance EMC |
FCC Class A or equivalent |
|
Maximum capture time |
The capture time, all modalities combined less than 4 seconds (the time needed to provide a final capture response to the calling application, when the biometric data is well placed on the sensors). |
|
Compatibility |
Laptop operating system |
|
Iris capture device |
|
|
MOSIP Compliance |
• Compliance with the latest SBI specificationsWith MDS and device management server. • With SDK for capture and quality control |
|
Capture distance |
Greater than or equal to 10 cm and exposure time less than 33 ms |
|
Diameter of the iris |
210 pixels or more |
|
Rotation angle |
Before compression, the Iris image will need to be pre-processed to calculate the rotation angle. The ISO 19794-6:2011 standard allows the calculation of the rotation angle for rectilinear images. |
|
Rotational uncertainty |
Refer to ISO 19794-6:2011 |
|
Illumination |
The eye should be illuminated using an infrared source or any other source that can produce a high-quality grayscale image. |
|
Image Format |
IMAGE_TYPE_VGA (K2) you IMAGE_TYPE_CROPPED (K3) |
|
Aspect ratio |
1 :1 |
|
Spatial Resolution |
>60% @ 2 Lp/mm |
|
Resolution in pixels |
>16 Pixels/mm |
|
Preview |
>= 3 frames/second MJPEG with overlapping quality score |
|
Imaging wavelength |
700-900nm |
|
Number of eyes captured simultaneously |
2 |
|
Capture Mode |
Automatic |
|
Density in grey |
8-bit (256 grayscale) |
|
Image margin |
50% to the left and right of the iris diameter, 25% to the top and bottom of the iris diameter. |
|
Scan Type |
Progressive |
|
Sensor SNR |
>36db |
|
Standards |
ISO/IEC 19794-6:2011 Additional B |
|
Software API |
Comply with operating system device manager and recording software application specifications to manage device discovery, streaming, capture, and encryption. |
|
Certification / Compliance |
• ISO/IEC 19794-6:2011, FCC Class A certified • USB-IF, CE |
|
Operating Temperature |
0° C to 50° C |
|
Durability/Shock |
IP 54 |
|
Humidity |
10-90% non-condensing |
|
Compression |
JPEG 2000 lossless |
|
Compression ratio |
Lossless |
|
FTM |
L0 – Use host-based security |
|
Maximum capture time |
The capture time, all modalities combined less than 4 seconds (the time needed to provide a final capture response to the calling application, when the biometric data is well placed on the sensors). |
|
Compatibility |
Laptop operating system |
|
Document scanner |
|
|
Kind |
Foldable |
|
Image sensor |
Minimum 5 megapixel CMOS. |
|
Scanning resolution |
Minimum of 6 dpi |
|
Scan size |
A4, Legal, Letter |
|
Focus mode |
Automatic focus |
|
Light |
Additional LED light |
|
Connectivity |
USB 2.0 |
|
Scanning speed |
Less than 15 seconds for a color page |
|
Output file format |
JPEG, PNG, PDF |
|
Compatibility |
Laptop operating system |
|
Extended Monitor |
|
|
Size |
13-inch LED display |
|
Resolution |
Aspect ratio 16:9, 1080p, full HD |
|
Port |
HDMI |
|
Compatibility |
Laptop operating system |
|
Accessories |
• Stand to support the monitor on a table • Cable to connect the monitor to the laptop |
|
Printer |
|
|
Type |
Color |
|
Technology |
Inkjet |
|
Resolution |
600 x 600 dpi |
|
Paper size |
A4 |
|
Print speed |
Minimum 10 pages per minute (ppm) |
|
Service life factor |
5000 pages |
|
Media used |
Leak-proof ink tank for economical operation with 2 additional refills of 140ml each |
|
Memory |
64 Mb |
|
Connectivity |
USB 2.0 |
|
Compatibility |
Laptop operating system |
|
QR code reader |
|
|
Connectivity |
Wired |
|
Capture Time |
5ms |
|
Capture angle |
Sweep at a maximum elevation of 65°, a rotation angle of 30° and a deflection angle of 55°. |
|
Barcode supported |
1D and 2D barcode |
|
Precision |
Superior decoding accuracy, ease of interpreting all kinds of incomplete and fuzzy barcodes, inverted barcodes. |
|
Functions |
• Portable • Manual and automatic capture mode |
|
Port |
USB 2.0 or higher, compatible with the USB hub and the registration laptop |
|
Power supply |
USB |
|
Usage |
Plug and play |
|
Compatibility |
Newest Windows operating system for the recording laptop |
|
Other |
Buzzer and LED light |
|
Accessories |
Connection cable to connect the player to the USB hub and the recording laptop |
|
Compatibility |
Laptop operating system |
|
USB Hub |
|
|
Interface |
• 2 USB 3.0 ports • 1 USB 2.0 ports • 1 Ethernet RJ45 port • 1 HDMI 4K port • 1 USB type-C port |
|
Transfer Rate |
5 Gbps |
|
Feeding |
USB type-C |
|
Compatibility |
Laptop operating system |
|
Backdrop |
|
|
Dimension |
80 x 120 cm maximum |
|
Flexible support |
Yes |
|
Foldable panel |
Yes |
|
Reflectivity |
No |
|
Opacity |
Yes |
|
Weight |
At most 1.5 kg |
|
Background color |
White |
|
Accessory |
Tripod mount |
|
Other |
Floor and wall mountable |
|
Extension cord |
|
|
Number of Sockets |
6 |
|
Activation Method |
Button On/Off |
|
Overload Protection |
Yes |
|
External hard drive |
|
|
Number of Sockets |
6 |
|
Activation Method |
Button On/Off |
|
Overload Protection |
Yes |
|
External hard drive |
|
|
Connectivity |
USB 3.0 |
|
Internal Player Interface |
SATA 6 Gb/s |
|
Capacity |
1 TB |
|
Type |
SSD |
|
Transfer Rate |
10 Gbps |
|
Power |
USB |
|
Security |
• Water resistant • Shock-resistant, 3D NAND Technology |
|
Dimension |
• Width: Less than 4 cm • Depth: Less than 7 cm • Height: Less than 1.1 cm |
|
Weight |
Less than 30 g |
|
Compatibility |
Newest Windows operating system for the recording laptop |
|
Internet connection key |
|
|
Accessory |
Connection cable (with extension cable) to connect to USB hub and laptop |
|
Supported Network Type |
4G/3G |
|
Compatibility |
• Newest Windows operating system for the recording laptop • Operator with the best coverage in the country of final use • Micro or Nano SIM |
|
Port |
USB 2.0 or 3.0 compatible with USB hub and recording laptop |
|
Speed |
300 Mbps or more |
|
Security |
Water resistance |
|
Technical support |
|
|
Warranty Support |
2 years of on-site warranty support, including on-site repair and replacement, if required. |
|
Maintenance |
3 additional years of extended maintenance |
|
Scope |
All parts including devices, wires, housing, software, anti-virus engine, drivers, and media that make up the recording kit. |
|
Assistance Service |
Provide a toll-free number that can be accessed via all available telecommunications networks in the country of final use. Provide an assistance email address. |
|
Response time |
Acknowledgement of receipt from the technical support service within 10 minutes of submitting complaints/reactions by phone and email. |
|
Language |
Support staff must be able to communicate, orally and in writing, in French. |
|
Support Hours |
7:00 a.m. – 5:00 p.m., Monday to Saturday. Public holidays and Sundays are included during the period of mass registration. |
|
Chair |
|
|
Chair |
Adjustable chair without a backrest and armrests. |
|
Dimension |
|
|
Dimension |
650*480*320mm |
|
Weight |
＜25kg |
